Freezer cold room – 1200×2200×2000 mm – 3.6 m³ – freezer unit included – -18 to -20 °C – American-style door
At a glance
Monoblock Cold Room 3.6 m³ – supplied with integrated negative refrigeration unit (−18/−20°C)
incl. 8.1% VAT: CHF 4,885.04
Free delivery, standard assembly included
What you can count on
- Secure payment
- Delivery & assembly
- 12 months of service included
- Support within 24 hours
Key specifications
Dimensions
Volume
Temperature range
−20 to −18 °C
Power
3.725kW
Quality & 1 Year Service
Quality & 1 Year Service
You can order from us with confidence. Our equipment is selected for high quality and long-term use in professional hospitality environments.
In addition, 1 year of service is included after purchase so you continue to have support beyond delivery.
Delivery & Shipping
Delivery & Shipping
Delivery across Switzerland. Free delivery with standard assembly included from a CHF 1,000 cart total; below that, the shipping costs shown at checkout apply.
Lead time is usually 3–15 business days. Depending on availability, production, procurement, carrier scheduling or special circumstances, it may extend to 20–24 business days. Exact timing on request.
Freezer cold room – 1200×2200×2000 mm – 3.6 m³ – freezer unit inclu...
Monoblock Cold Room 3.6 m³ – supplied with integrated negative refrigeration unit (−18/−20°C)
This M&R Gastro monoblock is configured for professional freezing applications. This specific variant is supplied with an integrated negative refrigeration unit engineered to maintain −18/−20°C.

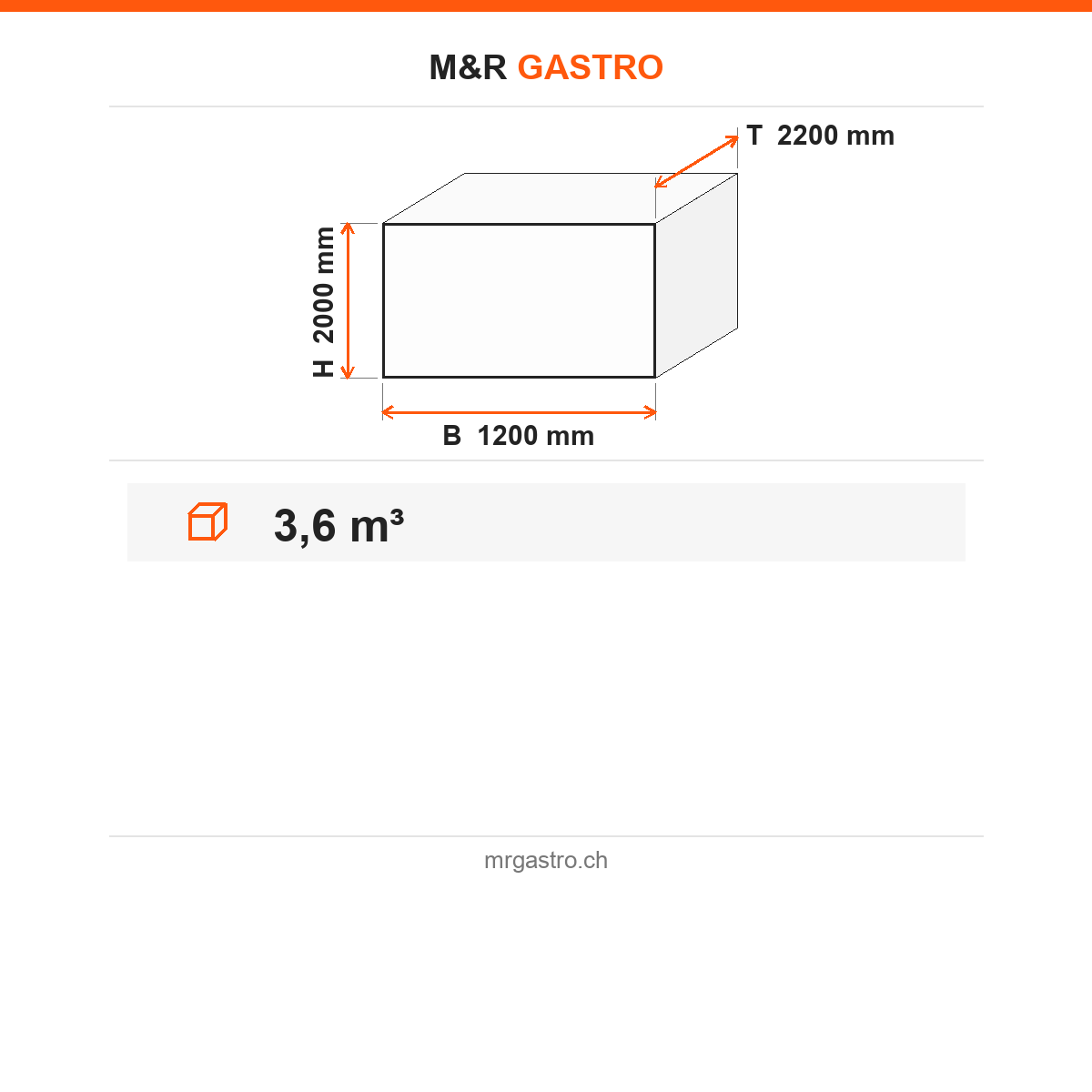

- Dimensions: 1200×2200×2000 mm · Volume: 3.6 m³
- Included: integrated negative refrigeration unit (−18/−20°C), vapor‑proof lamp, stainless steel 304 plate
- Manufacturer: M&R Gastro · SKU: MRG.CR.122220-U-N
Key construction points
- 10 cm polyurethane insulation in sandwich panels for low thermal conductivity
- Stainless steel 304 plate on exposed and load‑bearing surfaces
- Vapor‑proof lighting designed for cold and humid environments
- Factory‑installed negative refrigeration unit sized for stable −18/−20°C operation
Typical use cases
- Frozen food storage for catering, wholesale and retail
- Industrial freezing and intermediate cold storage in food production
- Commercial and pharmaceutical applications requiring −18/−20°C
Delivery scope for this variant
- Monoblock module 1200×2200×2000 mm
- Integrated negative refrigeration unit for −18/−20°C (factory fitted)
- Vapor‑proof lamp and stainless steel 304 plate as described
Please contact our sales team for details on electrical connection, transport, installation and commissioning.
-
Dimensions (W×D×H)
-
Volume
-
Power3.725kW
-
Voltage230V
-
Frequency50Hz
-
Temperature range−20 to −18 °C
Product resources
Technical documents
Download the official technical information available for the selected version.
Assembly profile
Assembly & door configuration
Verified data for the ordered version. The complete illustrated guide is available in the technical documents.
- Door system
- American door
- Panel height
- 2000 mm
- Clear door opening
- According to the ordered version
- Hinge side
- According to the ordered version
- Refrigeration unit
- Low-temperature unit included (−18 to −22 °C)
- Unit model
- MRG.SG.5-10-N
- Useful volume range
- 5–10 m³
- Electrical power
- 3.725 kW
- Required protection
- 1 × 16 A
- Electrical connection
- 230 V / 50 Hz
Install the L-shaped connection plate at the unit panel. After installing the unit, wait at least 1 hour before switching it on.
No universal certified test value is available for the maximum floor load. Verify point and distributed loads before assembly.
The cold room is delivered as compactly packed insulated panels and assembled on site. For delivery within Switzerland, M&R Gastro Schweiz handles transport and professional assembly in accordance with the order confirmation.
Assembly, connection and commissioning must be performed by qualified personnel. The order-specific panel plan takes precedence.
