−20 to −18 °C
−20 to −18 °C
−20 to −18 °C
Freezer cold room – 2200×2800×2200 mm – 10.4 m³ – freezer unit included – -18 to -20 °C – American-style door
At a glance
This monoblock cold room is supplied with an integrated negative refrigeration unit for -18/-20°C. Built for reliable frozen storage at constant subzero temperatures.
incl. 8.1% VAT: CHF 7,295.67
Free delivery, standard assembly included
What you can count on
- Secure payment
- Delivery & assembly
- 12 months of service included
- Support within 24 hours
Key specifications
Dimensions
Volume
Temperature range
−20 to −18 °C
Power
4.99kW
Quality & 1 Year Service
Quality & 1 Year Service
You can order from us with confidence. Our equipment is selected for high quality and long-term use in professional hospitality environments.
In addition, 1 year of service is included after purchase so you continue to have support beyond delivery.
Delivery & Shipping
Delivery & Shipping
Delivery across Switzerland. Free delivery with standard assembly included from a CHF 1,000 cart total; below that, the shipping costs shown at checkout apply.
Lead time is usually 3–15 business days. Depending on availability, production, procurement, carrier scheduling or special circumstances, it may extend to 20–24 business days. Exact timing on request.
Freezer cold room – 2200×2800×2200 mm – 10.4 m³ – freezer unit incl...
This monoblock cold room is supplied with an integrated negative refrigeration unit for -18/-20°C. Built for reliable frozen storage at constant subzero temperatures.
Key features
- Dimensions: 2200 × 2800 × 2200 mm (Volume: 10.4 m³)
- Integrated negative refrigeration unit for -18 / -20 °C
- 10 cm polyurethane insulation
- Vapor‑proof lighting suitable for humid, cold environments
- 304 stainless steel plate — hygienic, corrosion‑resistant surface
Construction & materials
- Monoblock design with prefabricated panels featuring a 10 cm PU core
- Interior surfaces with 304 stainless steel for easy cleaning and food safety
- Vapor‑proof lighting engineered for low‑temperature operation
- Integrated refrigeration unit optimized for continuous operation at -18/-20 °C
Typical applications
- Commercial frozen storage (meat, fish, frozen meals)
- Ice cream production and storage
- Cold chain applications in food industry and catering
- Low‑temperature storage for laboratories and research facilities
Delivery scope for this variant
- Monoblock cold room unit, dimensions 2200×2800×2200 mm (10.4 m³)
- Prefabricated panels with 10 cm polyurethane insulation
- Vapor‑proof interior lighting
- 304 stainless steel interior plate
- Integrated negative refrigeration unit for -18 / -20 °C
Note: This product page describes exactly the supplied configuration including the negative refrigeration unit (-18/-20°C). Please refer to the manufacturer's technical documentation for installation and connection requirements.
-

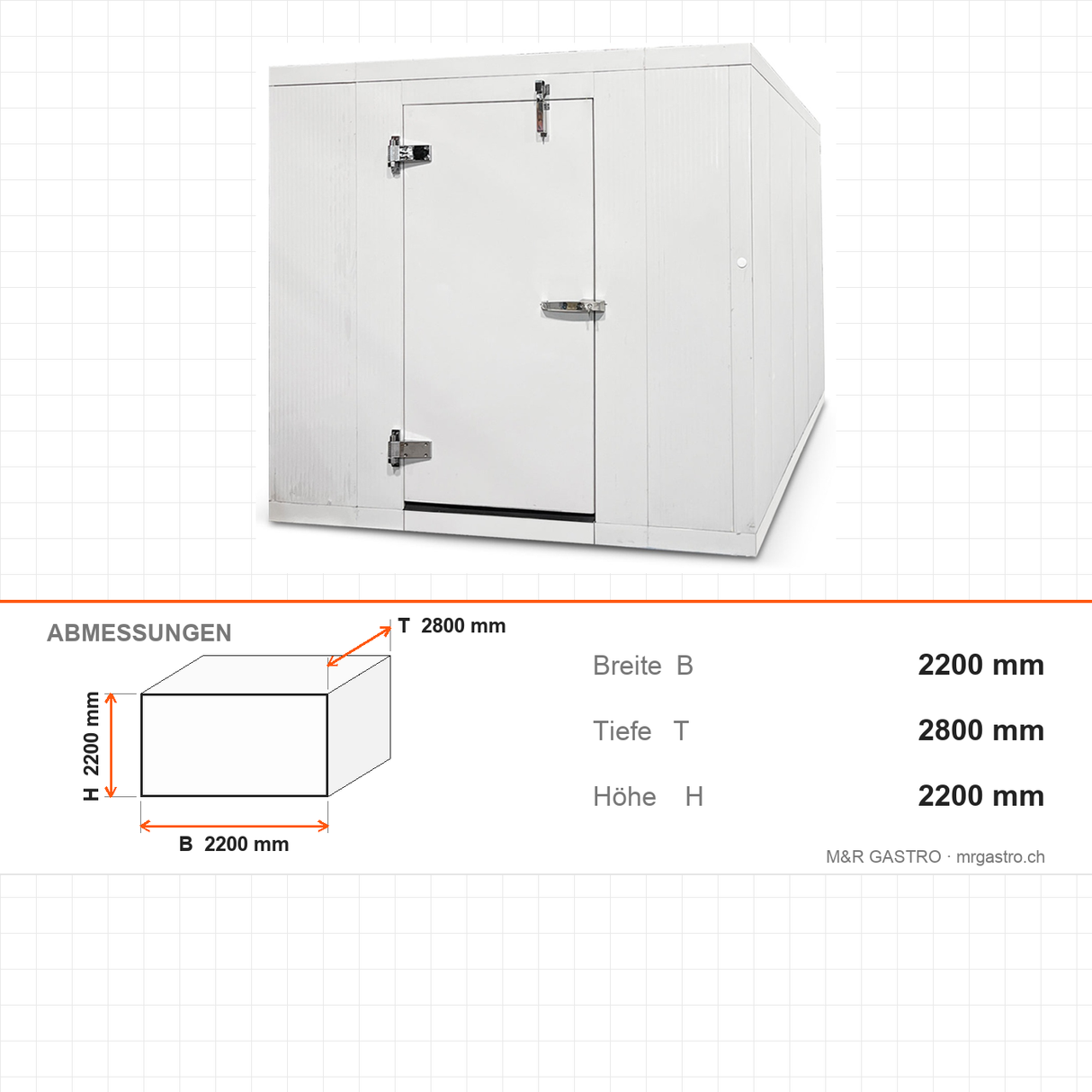

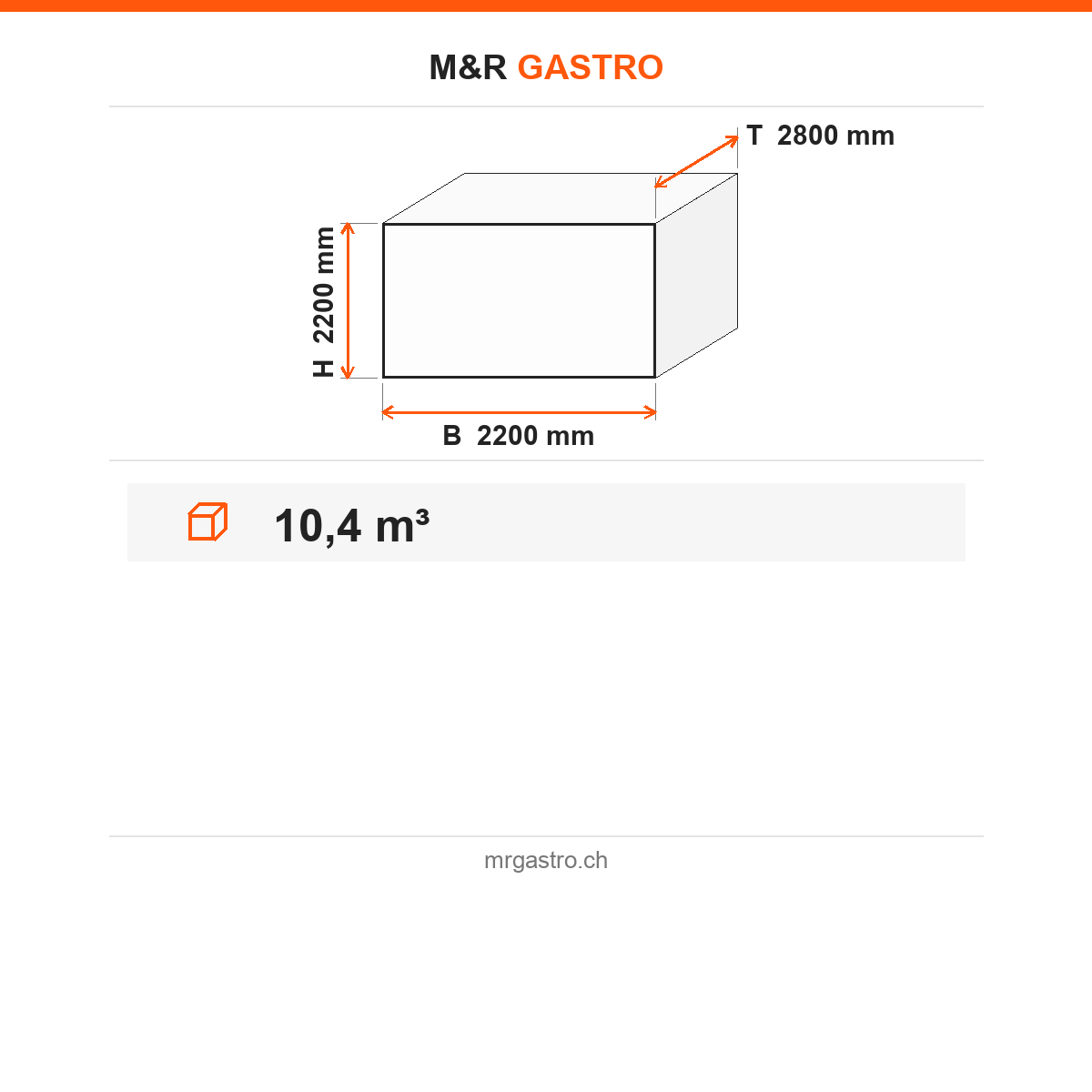

Dimensions (W×D×H)
-
Volume
-
Power4.99kW
-
Voltage230V
-
Frequency50Hz
-
Temperature range−20 to −18 °C
Product resources
Technical documents
Download the official technical information available for the selected version.
Assembly profile
Assembly & door configuration
Verified data for the ordered version. The complete illustrated guide is available in the technical documents.
- Door system
- American door
- Panel height
- 2200 mm
- Clear door opening
- According to the ordered version
- Hinge side
- According to the ordered version
- Refrigeration unit
- Low-temperature unit included (−18 to −22 °C)
- Unit model
- MRG.SG.10-18-N
- Useful volume range
- 10–18 m³
- Electrical power
- 4.99 kW
- Required protection
- 1 × 20 A
- Electrical connection
- 230 V / 50 Hz
Install the L-shaped connection plate at the unit panel. After installing the unit, wait at least 1 hour before switching it on.
No universal certified test value is available for the maximum floor load. Verify point and distributed loads before assembly.
The cold room is delivered as compactly packed insulated panels and assembled on site. For delivery within Switzerland, M&R Gastro Schweiz handles transport and professional assembly in accordance with the order confirmation.
Assembly, connection and commissioning must be performed by qualified personnel. The order-specific panel plan takes precedence.
