Freezer cold room – 2500×2500×2200 mm – 10.58 m³ – freezer unit included – -18 to -20 °C – American-style door
At a glance
Monoblock modular cold room ready for operation: dimensions 2500×2500×2200 mm (volume 10.58 m³). This specific offer is supplied with a negative refrigeration unit configured for -18/-20°C.
incl. 8.1% VAT: CHF 7,241.62
Free delivery, standard assembly included
What you can count on
- Secure payment
- Delivery & assembly
- 12 months of service included
- Support within 24 hours
Key specifications
Dimensions
Volume
Temperature range
−20 to −18 °C
Power
4.99kW
Quality & 1 Year Service
Quality & 1 Year Service
You can order from us with confidence. Our equipment is selected for high quality and long-term use in professional hospitality environments.
In addition, 1 year of service is included after purchase so you continue to have support beyond delivery.
Delivery & Shipping
Delivery & Shipping
Delivery across Switzerland. Free delivery with standard assembly included from a CHF 1,000 cart total; below that, the shipping costs shown at checkout apply.
Lead time is usually 3–15 business days. Depending on availability, production, procurement, carrier scheduling or special circumstances, it may extend to 20–24 business days. Exact timing on request.
Freezer cold room – 2500×2500×2200 mm – 10.58 m³ – freezer unit inc...
Monoblock modular cold room ready for operation: dimensions 2500×2500×2200 mm (volume 10.58 m³). This specific offer is supplied with a negative refrigeration unit configured for -18/-20°C.
Key features:

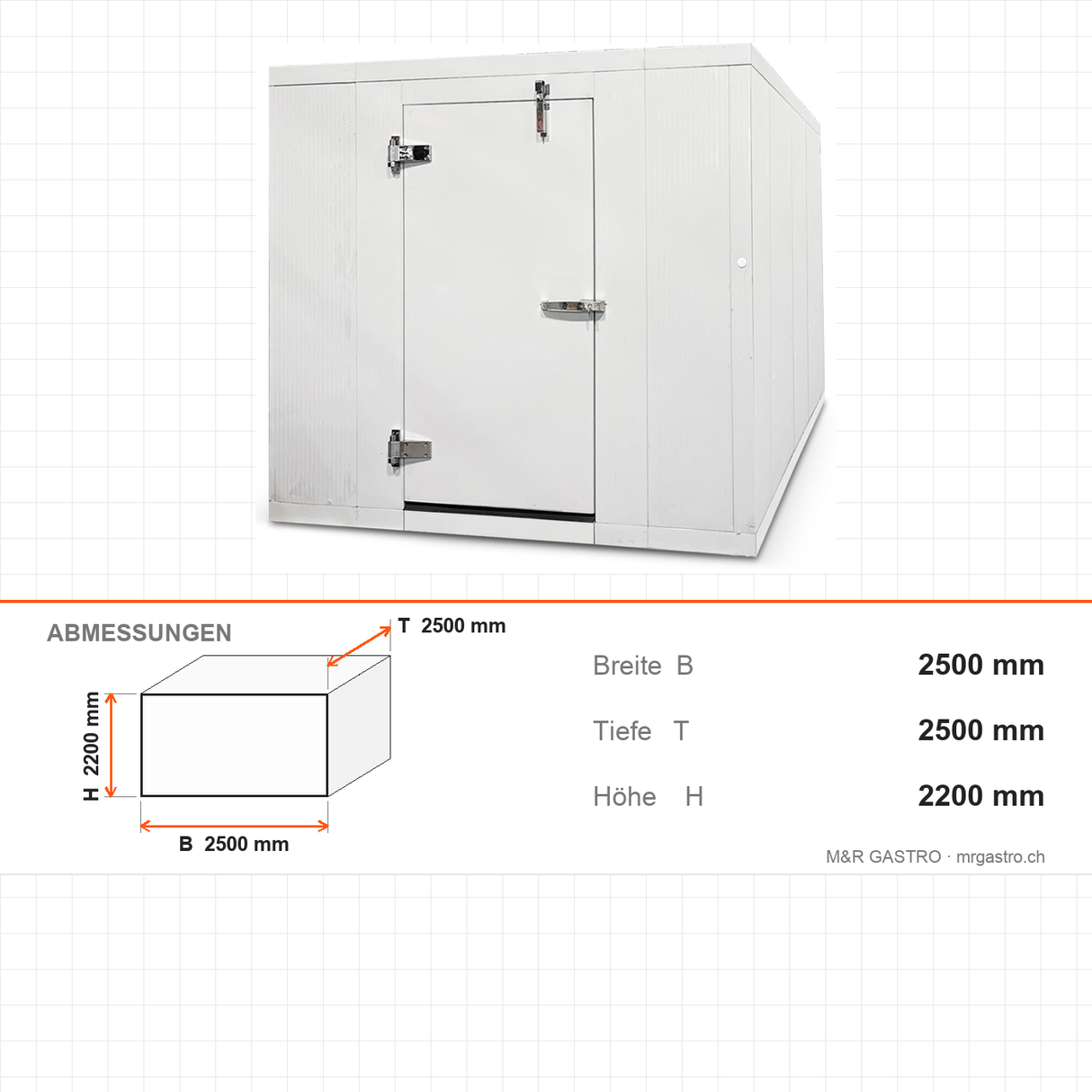

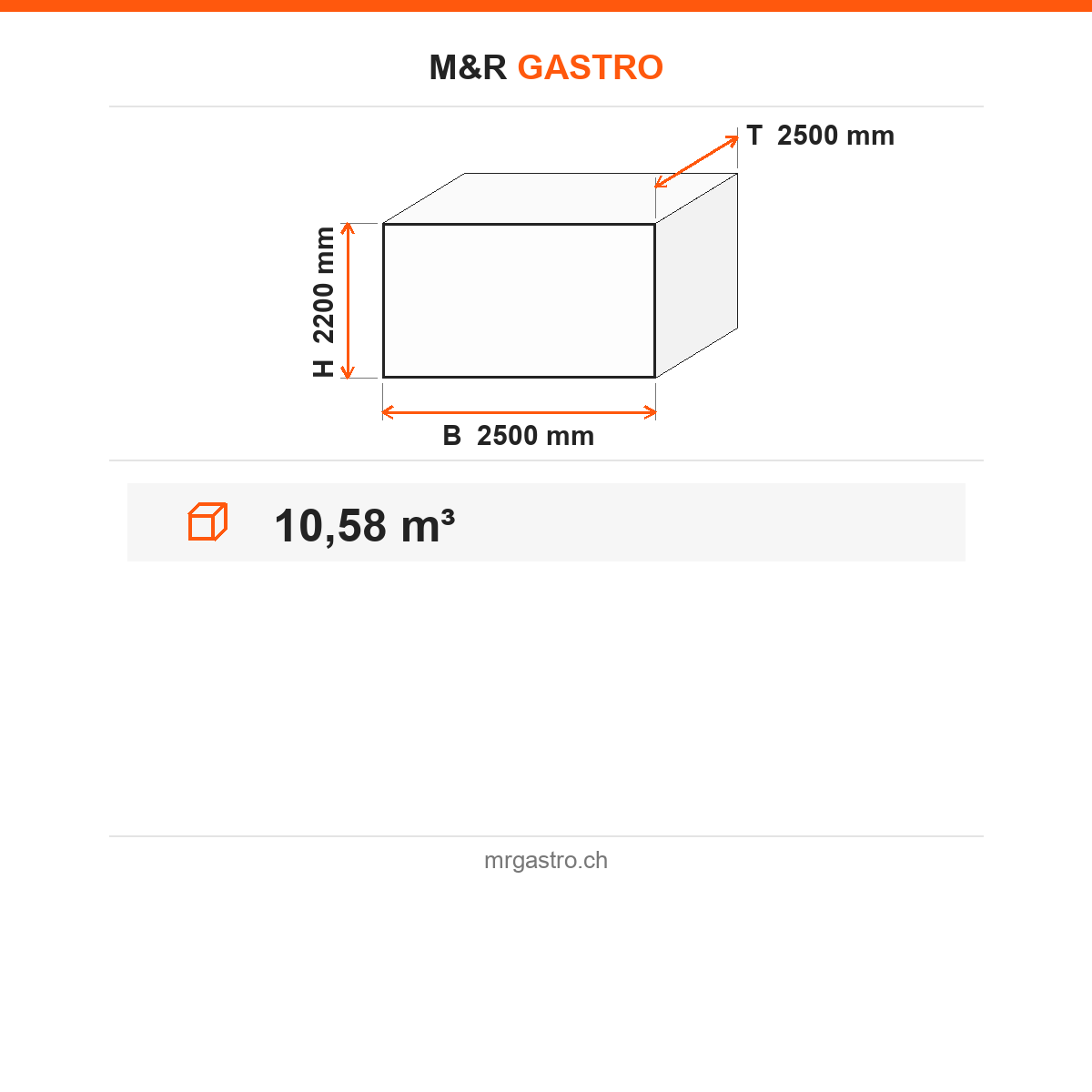

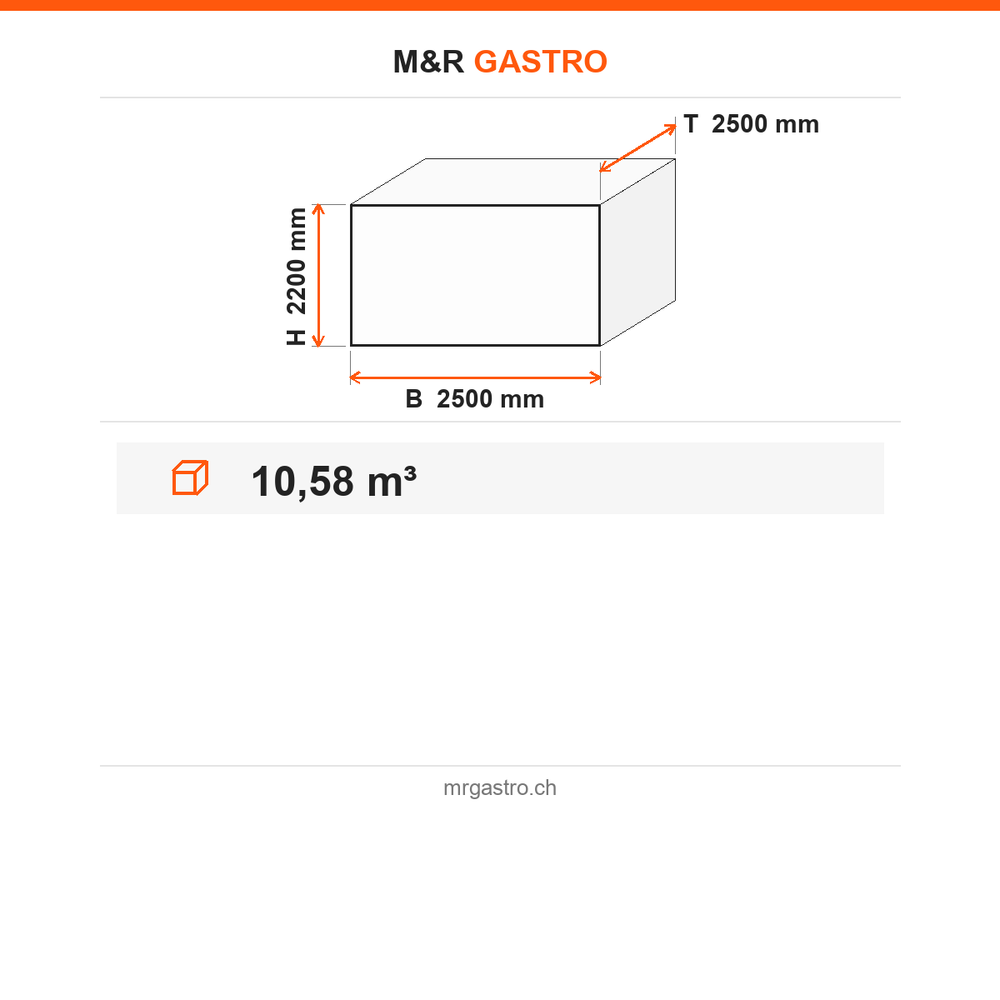

- Dimensions: 2500×2500×2200 mm (W×D×H), volume 10.58 m³
- Supplied with negative refrigeration unit for -18/-20°C (deep-freeze)
- Insulation: 10 cm rigid polyurethane (PU)
- Interior lining: 304 stainless steel plate
- Vapor-proof lighting suitable for cold, humid environments
Typical use cases:
- Storage of frozen food for restaurants, caterers and bakeries
- Distribution centres and food industry requiring stable negative temperatures
- Production lines needing reliable deep-freeze storage at -18/-20°C
Construction highlights:
- Modular monoblock design for easier transport and on-site installation
- 10 cm PU hard foam insulation for reduced thermal loss and efficient operation
- 304 stainless steel interior plate for hygiene and easy cleaning
- Vapor-proof lighting for safe illumination in freezing conditions
Delivery scope (this exact variant):
- Complete monoblock cold room module 2500×2500×2200 mm
- Installed negative refrigeration unit, rated for -18/-20°C
- Vapor-proof lighting fixture
- 304 stainless steel interior plate
- Factory-fitted 10 cm PU insulation
This product is supplied exactly as described: a fully equipped modular cold room delivered with a negative refrigeration unit set for -18/-20°C.
-
Dimensions (W×D×H)
-
Volume
-
Power4.99kW
-
Voltage230V
-
Frequency50Hz
-
Temperature range−20 to −18 °C
Product resources
Technical documents
Download the official technical information available for the selected version.
Assembly profile
Assembly & door configuration
Verified data for the ordered version. The complete illustrated guide is available in the technical documents.
- Door system
- American door
- Panel height
- 2200 mm
- Clear door opening
- According to the ordered version
- Hinge side
- According to the ordered version
- Refrigeration unit
- Low-temperature unit included (−18 to −22 °C)
- Unit model
- MRG.SG.10-18-N
- Useful volume range
- 10–18 m³
- Electrical power
- 4.99 kW
- Required protection
- 1 × 20 A
- Electrical connection
- 230 V / 50 Hz
Install the L-shaped connection plate at the unit panel. After installing the unit, wait at least 1 hour before switching it on.
No universal certified test value is available for the maximum floor load. Verify point and distributed loads before assembly.
The cold room is delivered as compactly packed insulated panels and assembled on site. For delivery within Switzerland, M&R Gastro Schweiz handles transport and professional assembly in accordance with the order confirmation.
Assembly, connection and commissioning must be performed by qualified personnel. The order-specific panel plan takes precedence.
