Freezer cold room – 1200×2200×2200 mm – 4 m³ – freezer unit included – -18 to -20 °C – American-style door
At a glance
Monoblock Cold Room – 4 m³ – with negative refrigeration unit (-18/-20°C)
incl. 8.1% VAT: CHF 4,971.52
Free delivery, standard assembly included
What you can count on
- Secure payment
- Delivery & assembly
- 12 months of service included
- Support within 24 hours
Key specifications
Dimensions
Volume
Temperature range
−20 to −18 °C
Power
3.725kW
Quality & 1 Year Service
Quality & 1 Year Service
You can order from us with confidence. Our equipment is selected for high quality and long-term use in professional hospitality environments.
In addition, 1 year of service is included after purchase so you continue to have support beyond delivery.
Delivery & Shipping
Delivery & Shipping
Delivery across Switzerland. Free delivery with standard assembly included from a CHF 1,000 cart total; below that, the shipping costs shown at checkout apply.
Lead time is usually 3–15 business days. Depending on availability, production, procurement, carrier scheduling or special circumstances, it may extend to 20–24 business days. Exact timing on request.
Freezer cold room – 1200×2200×2200 mm – 4 m³ – freezer unit include...
Monoblock Cold Room – 4 m³ – with negative refrigeration unit (-18/-20°C)
Professional modular cold room by M&R Gastro delivered with an integrated negative refrigeration unit configured to maintain -18 / -20 °C. Designed for reliable frozen storage in commercial settings.
Key features
- Integrated negative refrigeration unit (designed for -18 / -20 °C)
- Vapor Proof Light (moisture-protected lighting)
- 304 stainless steel cladding (interior and exterior)
- 10 cm polyurethane insulation

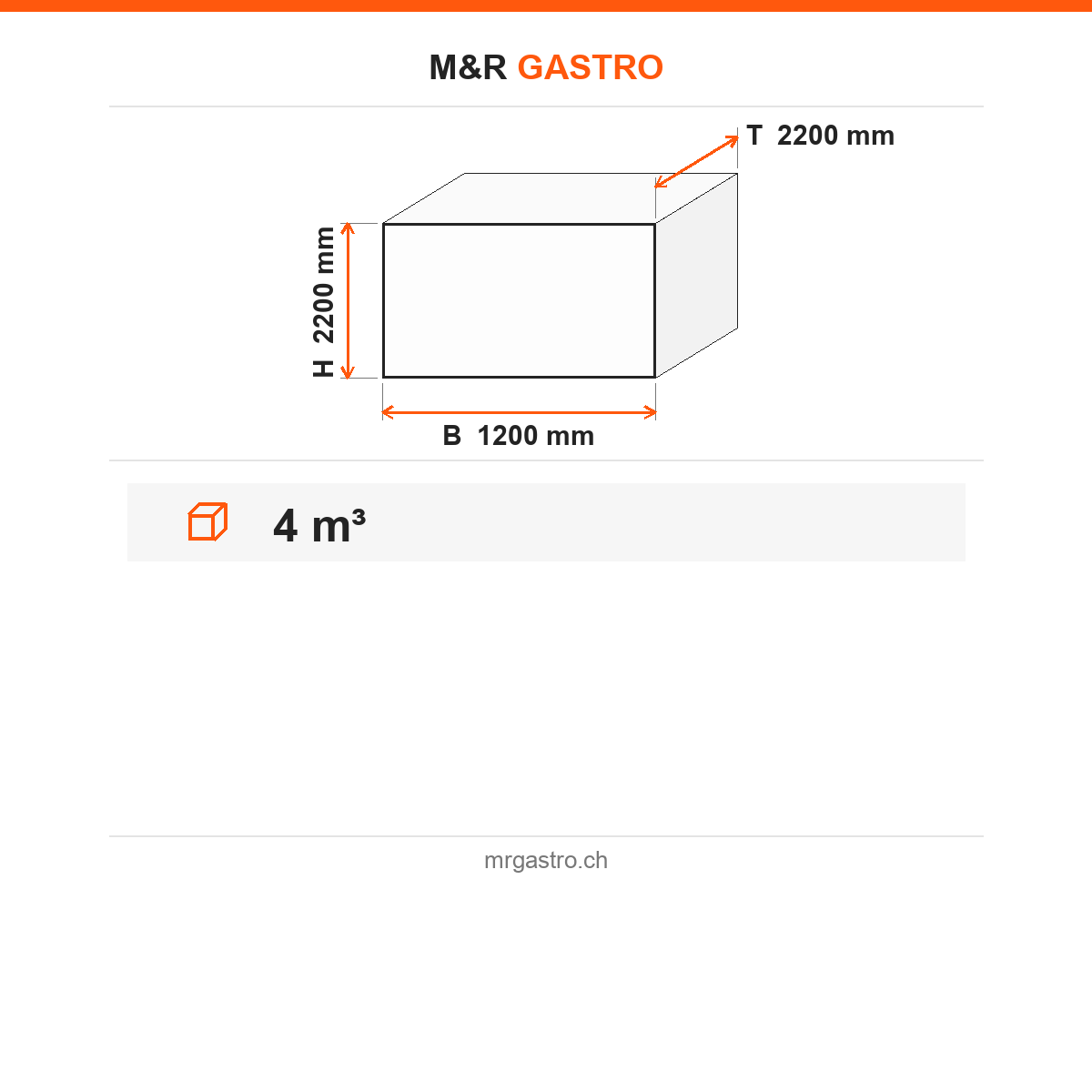

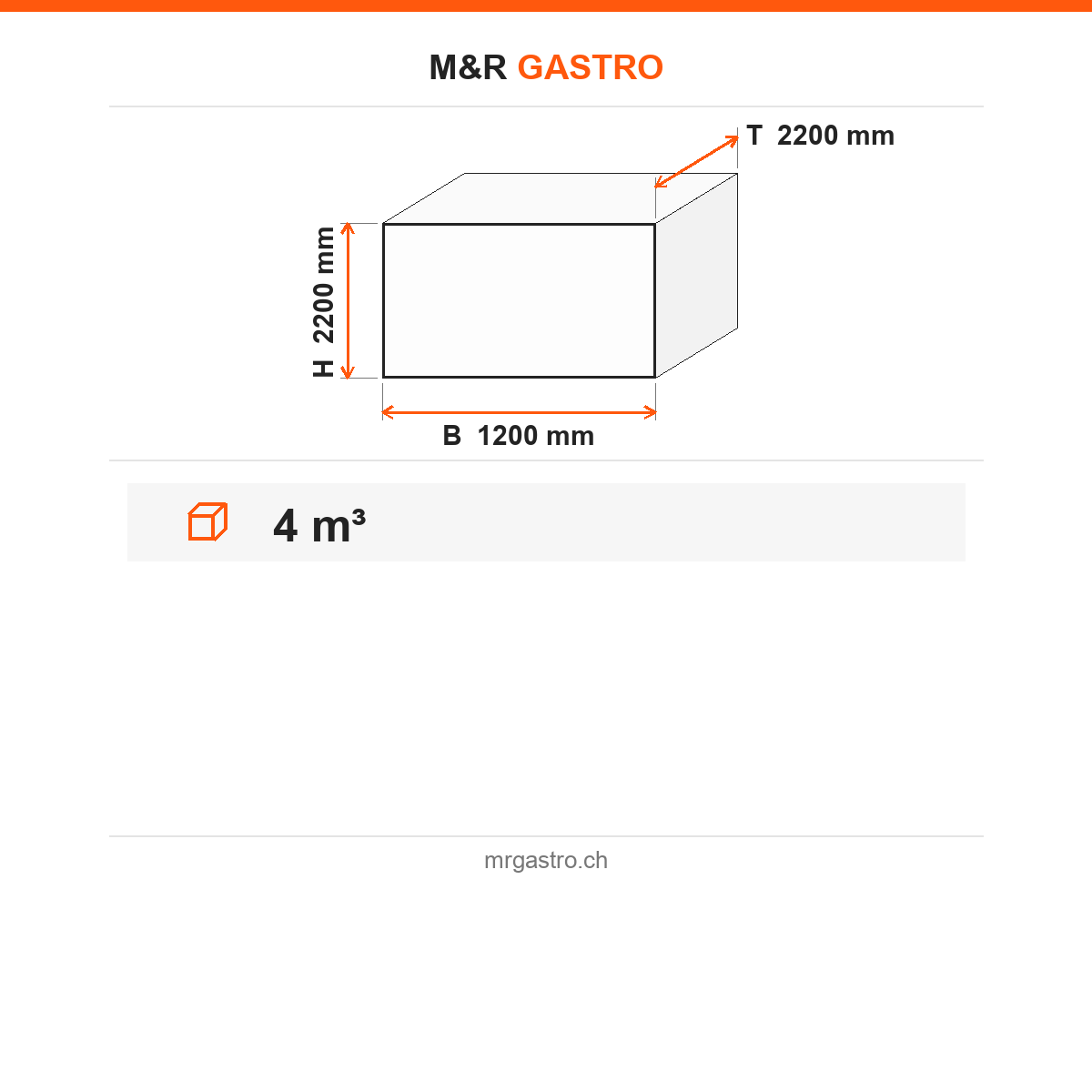

- Dimensions: 1200 × 2200 × 2200 mm — Volume: 4 m³
- Manufacturer: M&R Gastro — SKU: MRG.CR.122222-U-N
Construction highlights
- Hygienic 304 stainless surfaces for easy cleaning and long service life
- 10 cm closed-cell polyurethane core for low thermal transmittance and efficient operation
- Vapor Proof Light suited to humid deep-freeze environments
- Monoblock preassembled design for straightforward siting and commissioning
Typical applications
- Frozen storage of meat, fish, bakery and processed frozen goods
- Commercial kitchens, catering, food processing and retail distribution
- Production facilities and laboratories requiring stable -18/-20 °C conditions
Delivery scope for this variant
- Fully assembled Monoblock cold room with integrated negative refrigeration unit (-18/-20 °C)
- 304 stainless steel cladding (inside/outside) and 10 cm polyurethane insulation
- Vapor Proof Light and factory-installed system components, plus technical documentation
Commissioning, installation and maintenance contracts are available on request. For technical advice, lead times and commercial offers please contact M&R Gastro sales.
-
Dimensions (W×D×H)
-
Volume
-
Power3.725kW
-
Voltage230V
-
Frequency50Hz
-
Temperature range−20 to −18 °C
Product resources
Technical documents
Download the official technical information available for the selected version.
Assembly profile
Assembly & door configuration
Verified data for the ordered version. The complete illustrated guide is available in the technical documents.
- Door system
- American door
- Panel height
- 2200 mm
- Clear door opening
- According to the ordered version
- Hinge side
- According to the ordered version
- Refrigeration unit
- Low-temperature unit included (−18 to −22 °C)
- Unit model
- MRG.SG.5-10-N
- Useful volume range
- 5–10 m³
- Electrical power
- 3.725 kW
- Required protection
- 1 × 16 A
- Electrical connection
- 230 V / 50 Hz
Install the L-shaped connection plate at the unit panel. After installing the unit, wait at least 1 hour before switching it on.
No universal certified test value is available for the maximum floor load. Verify point and distributed loads before assembly.
The cold room is delivered as compactly packed insulated panels and assembled on site. For delivery within Switzerland, M&R Gastro Schweiz handles transport and professional assembly in accordance with the order confirmation.
Assembly, connection and commissioning must be performed by qualified personnel. The order-specific panel plan takes precedence.
